技术特征

机座范围	H80~450	功率范围	0.18~1000kW
额定电压	380V（特殊电压定制）	额定频率	50Hz（特殊频率定制）
效率等级	IE3	极数	2、4、6、8极
防护等级	IP55	冷却方式	IC411
绝缘等级	F	工作方式	S1
安装方式	B3、B5、B35、B14、B34、V1	接线方式	Y/∆

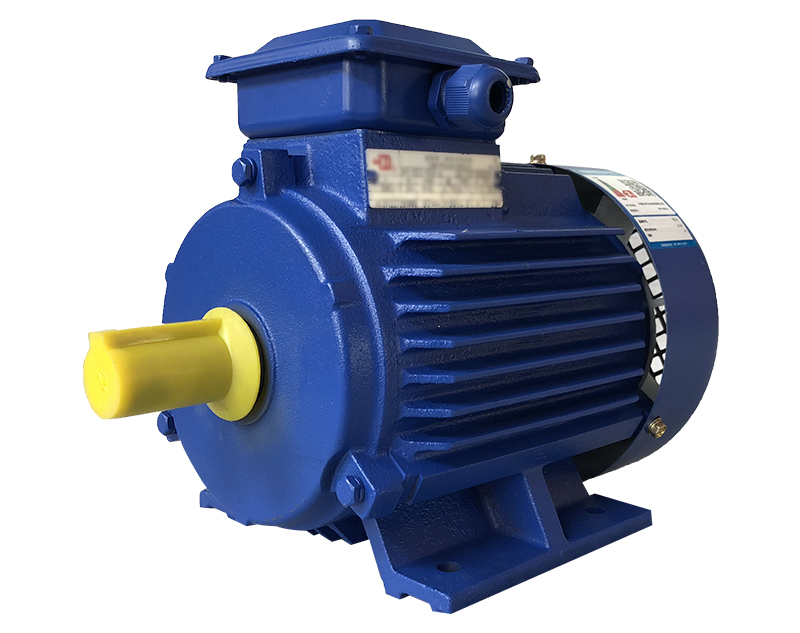

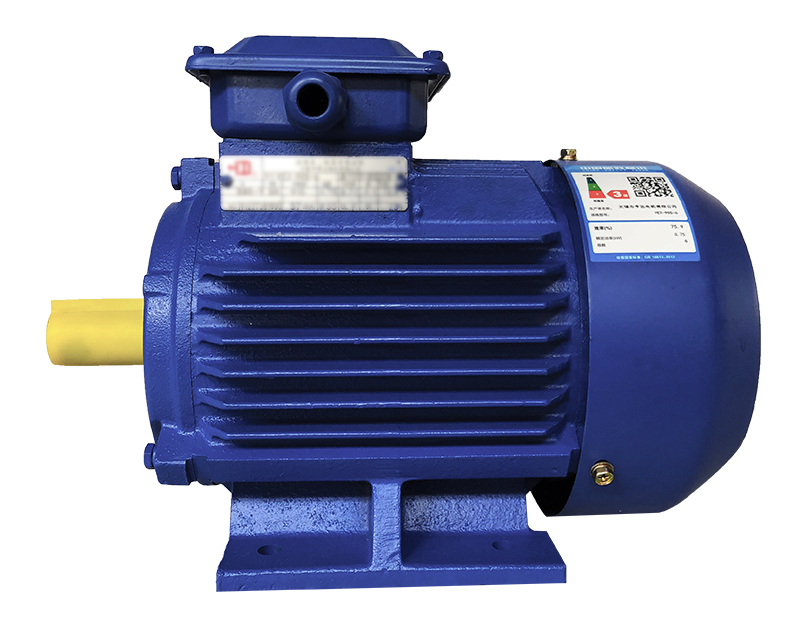

YE3系列三相异步电动机

YE3系列电动机是为了建设节约型社会而设计开发的一款产品，具有高效，节能，低振动，低噪音，性能可靠，安装维护方便等特点。本系列电动机为一般用途的三相异步电动机，可用于压缩机，风机，水泵，破碎机等机械设备，及在石油，化工，医药，矿山及其它环境条件比较恶劣的场合作动力源使用。

运行条件

-15°C~+40°C

环境空气温度

≤90% (当温度为25°c时)

环境空气月平均最高相对湿度

≤1KM

海拔

规格型号	极数	额定功率	额定电流	额定转速	额定转矩	效率	功率因数	噪声	防护等级	绝缘等级	工作制	接法	频率	电压
规格型号	极数	kW	A	r/min	N·m	η	cosΦ	dB	防护等级	绝缘等级	工作制	接法	Hz	V
YE3-80M1-2	2	0.75	1.7	2845	2.4	80.7	0.82	62	IP55	F	S1	Y	50	380
YE3-80M2-2	2	1.1	2.4	2840	3.5	82.7	0.83	62	IP55	F	S1	Y	50	380
YE3-90S-2	2	1.5	3.2	2840	4.8	84.2	0.84	67	IP55	F	S1	Y	50	380
YE3-90L-2	2	2.2	4.6	2840	7.0	85.9	0.85	67	IP55	F	S1	Y	50	380
YE3-100L-2	2	3	6.0	2860	9.6	87.1	0.87	74	IP55	F	S1	Y	50	380
YE3-112M-2	2	4	7.8	2890	12.7	88.1	0.88	77	IP55	F	S1	∆	50	380
YE3-112L-2	2	5.5	10.6	2890	17.5	89.2	0.88	77	IP55	F	S1	∆	50	380
YE3-132S1-2	2	5.5	10.6	2910	17.5	89.2	0.88	79	IP55	F	S1	∆	50	380
YE3-132S2-2	2	7.5	14.4	2905	23.9	90.1	0.88	79	IP55	F	S1	∆	50	380
YE3-132S3-2	2	9	17.2	2905	28.7	90.6	0.88	79	IP55	F	S1	∆	50	380
YE3-132M-2	2	11	20.6	2905	35.0	91.2	0.89	79	IP55	F	S1	∆	50	380
YE3-132L-2	2	15	27.9	2905	47.8	91.9	0.89	79	IP55	F	S1	∆	50	380
YE3-160M1-2	2	11	20.6	2935	35.0	91.2	0.89	81	IP55	F	S1	∆	50	380
YE3-160M2-2	2	15	27.9	2935	47.8	91.9	0.89	81	IP55	F	S1	∆	50	380
YE3-160L-2	2	18.5	34.2	2935	58.9	92.4	0.89	81	IP55	F	S1	∆	50	380
YE3-160L2-2	2	22	40.5	2935	70.0	92.7	0.89	81	IP55	F	S1	∆	50	380
YE3-180M0-2	2	18.5	34.2	2940	58.9	92.4	0.89	83	IP55	F	S1	∆	50	380
YE3-180M-2	2	22	40.5	2940	70.0	92.7	0.89	83	IP55	F	S1	∆	50	380
YE3-180L1-2	2	25	45.9	2940	79.6	93.0	0.89	83	IP55	F	S1	∆	50	380
YE3-180L2-2	2	30	54.9	2940	95.5	93.3	0.89	83	IP55	F	S1	∆	50	380
YE3-180LX-2	2	37	67.4	2940	117.8	93.7	0.89	83	IP55	F	S1	∆	50	380
YE3-200L1-2	2	30	54.9	2945	95.5	93.3	0.89	84	IP55	F	S1	∆	50	380
YE3-200L2-2	2	37	67.4	2945	117.8	93.7	0.89	84	IP55	F	S1	∆	50	380
YE3-200LX-2	2	45	80.8	2945	143.3	94.0	0.90	84	IP55	F	S1	∆	50	380
YE3-225M-2	2	45	80.8	2950	143.3	94.0	0.90	86	IP55	F	S1	∆	50	380
YE3-225M2-2	2	55	98.5	2950	175.1	94.3	0.90	86	IP55	F	S1	∆	50	380
YE3-250M-2	2	55	98.5	2965	175.1	94.3	0.90	89	IP55	F	S1	∆	50	380
YE3-250M2-2	2	75	133.7	2965	238.8	94.7	0.90	89	IP55	F	S1	∆	50	380
YE3-280S-2	2	75	133.7	2965	238.8	94.7	0.90	91	IP55	F	S1	∆	50	380
YE3-280M-2	2	90	159.9	2965	286.5	95.0	0.90	91	IP55	F	S1	∆	50	380
YE3-280L-2	2	110	195.1	2965	350.2	95.2	0.90	91	IP55	F	S1	∆	50	380
YE3-280M2-2	2	110	195.1	2965	350.2	95.2	0.90	91	IP55	F	S1	∆	50	380
YE3-280MX-2	2	132	233.6	2965	420.2	95.4	0.90	91	IP55	F	S1	∆	50	380
YE3-315S-2	2	110	195.1	2975	350.2	95.2	0.90	92	IP55	F	S1	∆	50	380
YE3-315M-2	2	132	233.6	2975	420.2	95.4	0.90	92	IP55	F	S1	∆	50	380
YE3-315L1-2	2	160	279.4	2975	509.3	95.6	0.91	92	IP55	F	S1	∆	50	380
YE3-315L12-2	2	185	322.8	2975	588.9	95.7	0.91	92	IP55	F	S1	∆	50	380
YE3-315L2-2	2	200	348.6	2975	636.7	95.8	0.91	92	IP55	F	S1	∆	50	380
YE3-315LX1-2	2	220	383.4	2975	700.3	95.8	0.91	92	IP55	F	S1	∆	50	380
YE3-315LX2-2	2	250	435.7	2975	795.8	95.8	0.91	92	IP55	F	S1	∆	50	380
YE3-355M0-2	2	220	383.4	2970	700.3	95.8	0.91	100	IP55	F	S1	∆	50	380
YE3-355M-2	2	250	435.7	2970	795.8	95.8	0.91	100	IP55	F	S1	∆	50	380
YE3-355L0-2	2	280	488.0	2970	891.3	95.8	0.91	100	IP55	F	S1	∆	50	380
YE3-355L-2	2	315	549.0	2970	1002.8	95.8	0.91	100	IP55	F	S1	∆	50	380
YE3-355X1-2	2	355	625.6	2970	1130.1	95.8	0.90	100	IP55	F	S1	∆	50	380
YE3-355X2-2	2	375	660.8	2970	1193.8	95.8	0.90	100	IP55	F	S1	∆	50	380
YE3-400M1-2	2	355	625.6	2985	1130.1	95.8	0.90	97	IP55	F	S1	∆	50	380
YE3-400M2-2	2	400	704.9	2985	1273.3	95.8	0.90	97	IP55	F	S1	∆	50	380
YE3-400M3-2	2	450	793.0	2985	1432.5	95.8	0.90	97	IP55	F	S1	∆	50	380
YE3-400L1-2	2	500	881.1	2985	1591.7	95.8	0.90	97	IP55	F	S1	∆	50	380
YE3-400L2-2	2	560	976.0	2985	1782.7	95.8	0.91	97	IP55	F	S1	∆	50	380
YE3-400L3-2	2	630	1098.0	2985	2005.5	95.8	0.91	97	IP55	F	S1	∆	50	380
YE3-450X1-2	2	710	1237.4	2990	2260.2	95.8	0.91	97	IP55	F	S1	∆	50	380
YE3-450X2-2	2	800	1394.3	2990	2546.7	95.8	0.91	97	IP55	F	S1	∆	50	380
YE3-450X3-2	2	900	1568.6	2990	2865.0	95.8	0.91	97	IP55	F	S1	∆	50	380
YE3-450X4-2	2	1000	1723.9	2990	3183.3	95.8	0.92	97	IP55	F	S1	∆	50	380
YE3-80M1-4	4	0.55	1.4	1380	3.5	80.8	0.75	56	IP55	F	S1	Y	50	380
YE3-80M2-4	4	0.75	1.8	1380	4.8	82.5	0.75	56	IP55	F	S1	Y	50	380
YE3-90S-4	4	1.1	2.6	1390	7.0	84.1	0.76	59	IP55	F	S1	Y	50	380
YE3-90L-4	4	1.5	3.5	1390	9.6	85.3	0.77	59	IP55	F	S1	Y	50	380
YE3-100L1-4	4	2.2	4.8	1410	14.0	86.7	0.81	64	IP55	F	S1	Y	50	380
YE3-100L2-4	4	3	6.3	1410	19.1	87.7	0.82	64	IP55	F	S1	Y	50	380
YE3-112M-4	4	4	8.4	1440	25.5	88.6	0.82	65	IP55	F	S1	∆	50	380
YE3-112L-4	4	5.5	11.2	1440	35.0	89.6	0.83	64	IP55	F	S1	∆	50	380
YE3-132S-4	4	5.5	11.2	1445	35.0	89.6	0.83	71	IP55	F	S1	∆	50	380
YE3-132M-4	4	7.5	15.0	1445	47.8	90.4	0.84	71	IP55	F	S1	∆	50	380
YE3-132M2-4	4	9	17.9	1445	57.3	90.9	0.84	71	IP55	F	S1	∆	50	380
YE3-132L1-4	4	11	21.5	1445	70.0	91.4	0.85	71	IP55	F	S1	∆	50	380
YE3-132L2-4	4	15	28.8	1445	95.5	92.1	0.86	71	IP55	F	S1	∆	50	380
YE3-160M-4	4	11	21.5	1470	70.0	91.4	0.85	73	IP55	F	S1	∆	50	380
YE3-160M1-4	4	13	25.3	1470	82.8	91.8	0.85	73	IP55	F	S1	∆	50	380
YE3-160L-4	4	15	28.8	1470	95.5	92.1	0.86	73	IP55	F	S1	∆	50	380
YE3-160L2-4	4	18.5	35.3	1470	117.8	92.6	0.86	73	IP55	F	S1	∆	50	380
YE3-180M0-4	4	17	32.5	1470	108.2	92.4	0.86	76	IP55	F	S1	∆	50	380
YE3-180M-4	4	18.5	35.3	1470	117.8	92.6	0.86	76	IP55	F	S1	∆	50	380
YE3-180L0-4	4	20.5	39.0	1470	130.5	92.8	0.86	76	IP55	F	S1	∆	50	380
YE3-180L-4	4	22	41.8	1470	140.1	93.0	0.86	76	IP55	F	S1	∆	50	380
YE3-180L2-4	4	30	56.6	1470	191.0	93.6	0.86	76	IP55	F	S1	∆	50	380
YE3-180LX-4	4	37	69.6	1470	235.6	93.9	0.86	76	IP55	F	S1	∆	50	380
YE3-200L-4	4	30	56.6	1470	191.0	93.6	0.86	76	IP55	F	S1	∆	50	380
YE3-200L2-4	4	37	69.6	1470	235.6	93.9	0.86	76	IP55	F	S1	∆	50	380
YE3-225S-4	4	37	69.6	1475	235.6	93.9	0.86	78	IP55	F	S1	∆	50	380
YE3-225M-4	4	45	84.4	1475	286.5	94.2	0.86	78	IP55	F	S1	∆	50	380
YE3-225M2-4	4	55	102.7	1475	350.2	94.6	0.86	78	IP55	F	S1	∆	50	380
YE3-250M-4	4	55	102.7	1475	350.2	94.6	0.86	79	IP55	F	S1	∆	50	380
YE3-250M2-4	4	75	136.3	1475	477.5	95.0	0.88	79	IP55	F	S1	∆	50	380
YE3-250XM-4	4	75	136.3	1475	477.5	95.0	0.88	79	IP55	F	S1	∆	50	380
YE3-250MX-4	4	90	163.2	1475	573.0	95.2	0.88	79	IP55	F	S1	∆	50	380
YE3-280S-4	4	75	136.3	1485	477.5	95.0	0.88	80	IP55	F	S1	∆	50	380
YE3-280M-4	4	90	163.2	1485	573.0	95.2	0.88	80	IP55	F	S1	∆	50	380
YE3-280M1-4	4	110	196.8	1485	700.3	95.4	0.89	80	IP55	F	S1	∆	50	380
YE3-280MX-4	4	132	235.7	1485	840.4	95.6	0.89	80	IP55	F	S1	∆	50	380
YE3-315S-4	4	110	196.8	1485	700.3	95.4	0.89	88	IP55	F	S1	∆	50	380
YE3-315M-4	4	132	235.7	1485	840.4	95.6	0.89	88	IP55	F	S1	∆	50	380
YE3-315L1-4	4	160	285.1	1485	1018.7	95.8	0.89	88	IP55	F	S1	∆	50	380
YE3-315L12-4	4	185	329.3	1485	1177.8	95.9	0.89	88	IP55	F	S1	∆	50	380
YE3-315L2-4	4	200	351.7	1485	1273.3	96.0	0.90	88	IP55	F	S1	∆	50	380
YE3-315LX1-4	4	220	386.9	1485	1400.7	96.0	0.90	88	IP55	F	S1	∆	50	380
YE3-315LX2-4	4	250	439.6	1485	1591.7	96.0	0.90	88	IP55	F	S1	∆	50	380
YE3-355M01-4	4	220	386.9	1490	1400.7	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-355M-4	4	250	439.6	1490	1591.7	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-355M2-4	4	280	492.4	1490	1782.7	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-355L-4	4	315	553.9	1490	2005.5	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-355L2-4	4	355	638.5	1490	2260.2	96.0	0.88	95	IP55	F	S1	∆	50	380
YE3-355X1-4	4	355	638.5	1490	2260.2	96.0	0.88	95	IP55	F	S1	∆	50	380
YE3-355X2-4	4	375	674.4	1490	2387.5	96.0	0.88	95	IP55	F	S1	∆	50	380
YE3-400M1-4	4	355	638.5	1490	2260.2	96.0	0.88	93	IP55	F	S1	∆	50	380
YE3-400M2-4	4	400	719.4	1490	2546.7	96.0	0.88	93	IP55	F	S1	∆	50	380
YE3-400M3-4	4	450	809.3	1490	2865.0	96.0	0.88	93	IP55	F	S1	∆	50	380
YE3-400L1-4	4	500	899.3	1490	3183.3	96.0	0.88	93	IP55	F	S1	∆	50	380
YE3-400L2-4	4	560	995.9	1490	3565.3	96.0	0.89	93	IP55	F	S1	∆	50	380
YE3-400L3-4	4	630	1120.3	1490	4011.0	96.0	0.89	93	IP55	F	S1	∆	50	380
YE3-450X1-4	4	710	1262.6	1490	4520.3	96.0	0.89	95	IP55	F	S1	∆	50	380
YE3-450X2-4	4	800	1406.8	1490	5093.3	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-450X3-4	4	900	1582.7	1490	5730.0	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-450X4-4	4	1000	1758.6	1490	6366.7	96.0	0.90	95	IP55	F	S1	∆	50	380
YE3-80M1-6	6	0.37	1.1	900	3.5	73.5	0.70	54	IP55	F	S1	Y	50	380
YE3-80M2-6	6	0.55	1.5	900	5.3	77.2	0.72	54	IP55	F	S1	Y	50	380
YE3-90S-6	6	0.75	2.0	915	7.2	78.9	0.71	57	IP55	F	S1	Y	50	380
YE3-90L-6	6	1.1	2.8	915	10.5	81.0	0.73	57	IP55	F	S1	Y	50	380
YE3-100L-6	6	1.5	3.8	920	14.3	82.5	0.73	61	IP55	F	S1	Y	50	380
YE3-112M-6	6	2.2	5.4	940	21.0	84.3	0.74	65	IP55	F	S1	Y	50	380
YE3-132S-6	6	3	7.2	960	28.7	85.6	0.74	69	IP55	F	S1	Y	50	380
YE3-132M1-6	6	4	9.5	960	38.2	86.8	0.74	69	IP55	F	S1	∆	50	380
YE3-132M2-6	6	5.5	12.7	960	52.5	88.0	0.75	69	IP55	F	S1	∆	50	380
YE3-160M-6	6	7.5	16.2	970	71.6	89.1	0.79	73	IP55	F	S1	∆	50	380
YE3-160L-6	6	11	23.1	970	105.1	90.3	0.80	73	IP55	F	S1	∆	50	380
YE3-180L-6	6	15	30.9	970	143.3	91.2	0.81	73	IP55	F	S1	∆	50	380
YE3-180L2-6	6	17	34.9	970	162.4	91.5	0.81	73	IP55	F	S1	∆	50	380
YE3-180L3-6	6	20.5	41.8	970	195.8	92.0	0.81	73	IP55	F	S1	∆	50	380
YE3-200L1-6	6	18.5	37.8	975	176.7	91.7	0.81	73	IP55	F	S1	∆	50	380
YE3-200L2-6	6	22	44.8	975	210.1	92.2	0.81	73	IP55	F	S1	∆	50	380
YE3-225M-6	6	30	59.1	980	286.5	92.9	0.83	74	IP55	F	S1	∆	50	380
YE3-250M-6	6	37	71.7	980	353.4	93.3	0.84	76	IP55	F	S1	∆	50	380
YE3-280S-6	6	45	85.8	980	429.8	93.7	0.85	78	IP55	F	S1	∆	50	380
YE3-280M-6	6	55	103.3	980	525.3	94.1	0.86	78	IP55	F	S1	∆	50	380
YE3-315S-6	6	75	143.4	985	716.3	94.6	0.84	83	IP55	F	S1	∆	50	380
YE3-315M-6	6	90	169.5	985	859.5	94.9	0.85	83	IP55	F	S1	∆	50	380
YE3-315L1-6	6	110	206.8	985	1050.5	95.1	0.85	83	IP55	F	S1	∆	50	380
YE3-315L2-6	6	132	244.5	985	1260.6	95.4	0.86	83	IP55	F	S1	∆	50	380
YE3-355M1-6	6	160	295.7	990	1528.0	95.6	0.86	85	IP55	F	S1	∆	50	380
YE3-355M12-6	6	185	337.6	990	1766.8	95.7	0.87	85	IP55	F	S1	∆	50	380
YE3-355M2-6	6	200	364.6	990	1910.0	95.8	0.87	85	IP55	F	S1	∆	50	380
YE3-355M3-6	6	220	401.1	990	2101.0	95.8	0.87	85	IP55	F	S1	∆	50	380
YE3-355L-6	6	250	455.7	990	2387.5	95.8	0.87	85	IP55	F	S1	∆	50	380
YE3-355L2-6	6	280	510.4	990	2674.0	95.8	0.87	85	IP55	F	S1	∆	50	380
YE3-355X1-6	6	315	609.3	990	3008.3	95.8	0.82	85	IP55	F	S1	∆	50	380
YE3-400M1-6	6	315	609.3	990	3008.3	95.8	0.82	92	IP55	F	S1	∆	50	380
YE3-400M2-6	6	355	686.6	990	3390.3	95.8	0.82	92	IP55	F	S1	∆	50	380
YE3-400L1-6	6	400	764.3	990	3820.0	95.8	0.83	92	IP55	F	S1	∆	50	380
YE3-400L2-6	6	450	859.9	990	4297.5	95.8	0.83	92	IP55	F	S1	∆	50	380
YE3-400L3-6	6	500	955.4	990	4775.0	95.8	0.83	92	IP55	F	S1	∆	50	380
YE3-450X0-6	6	560	1057.3	990	5348.0	95.8	0.84	95	IP55	F	S1	∆	50	380
YE3-450X1-6	6	630	1189.5	990	6016.5	95.8	0.84	95	IP55	F	S1	∆	50	380
YE3-450X2-6	6	670	1265.0	990	6398.5	95.8	0.84	95	IP55	F	S1	∆	50	380
YE3-450X3-6	6	710	1340.5	990	6780.5	95.8	0.84	95	IP55	F	S1	∆	50	380
YE3-80M1-8	8	0.18	0.8	665	2.3	58.7	0.61	52	IP55	F	S1	Y	50	380
YE3-80M2-8	8	0.25	1.0	665	3.2	64.1	0.61	52	IP55	F	S1	Y	50	380
YE3-90S-8	8	0.37	1.3	685	4.7	69.3	0.61	56	IP55	F	S1	Y	50	380
YE3-90L-8	8	0.55	1.9	685	7.0	73.0	0.61	56	IP55	F	S1	Y	50	380
YE3-100L1-8	8	0.75	2.3	705	9.6	75.0	0.67	59	IP55	F	S1	Y	50	380
YE3-100L2-8	8	1.1	3.1	705	14.0	77.7	0.69	59	IP55	F	S1	Y	50	380
YE3-112M-8	8	1.5	4.1	705	19.1	79.7	0.70	61	IP55	F	S1	Y	50	380
YE3-132S-8	8	2.2	5.7	720	28.0	81.9	0.71	64	IP55	F	S1	Y	50	380
YE3-132M-8	8	3	7.5	720	38.2	83.5	0.73	64	IP55	F	S1	Y	50	380
YE3-160M1-8	8	4	9.8	720	50.9	84.8	0.73	68	IP55	F	S1	∆	50	380
YE3-160M2-8	8	5.5	13.1	720	70.0	86.2	0.74	68	IP55	F	S1	∆	50	380
YE3-160L-8	8	7.5	17.4	720	95.5	87.3	0.75	68	IP55	F	S1	∆	50	380
YE3-160L-8	8	9	20.9	870	114.6	87.3	0.75	68	IP55	F	S1	∆	60	440
YE3-180L-8	8	11	25.2	730	140.1	88.6	0.75	70	IP55	F	S1	∆	50	380
YE3-200L-8	8	15	33.5	730	191.0	89.6	0.76	73	IP55	F	S1	∆	50	380
YE3-225S-8	8	18.5	41.0	735	235.6	90.1	0.76	73	IP55	F	S1	∆	50	380
YE3-225M-8	8	22	47.3	735	280.1	90.6	0.78	73	IP55	F	S1	∆	50	380
YE3-250M-8	8	30	63.2	730	382.0	91.3	0.79	75	IP55	F	S1	∆	50	380
YE3-280S-8	8	37	77.5	735	471.1	91.8	0.79	76	IP55	F	S1	∆	50	380
YE3-280M-8	8	45	93.9	735	573.0	92.2	0.79	76	IP55	F	S1	∆	50	380
YE3-315S-8	8	55	111.5	745	700.3	92.5	0.81	82	IP55	F	S1	∆	50	380
YE3-315M-8	8	75	151.1	745	955.0	93.1	0.81	82	IP55	F	S1	∆	50	380
YE3-315L1-8	8	90	178.5	745	1146.0	93.4	0.82	82	IP55	F	S1	∆	50	380
YE3-315L2-8	8	110	217.5	745	1400.7	93.7	0.82	82	IP55	F	S1	∆	50	380
YE3-315L3-8	8	132	260.2	745	1680.8	94.0	0.82	82	IP55	F	S1	∆	50	380
YE3-355M1-8	8	132	260.2	745	1680.8	94.0	0.82	89	IP55	F	S1	∆	50	380
YE3-355M2-8	8	160	314.4	745	2037.3	94.3	0.82	89	IP55	F	S1	∆	50	380
YE3-355M3-8	8	185	358.4	745	2355.7	94.5	0.83	89	IP55	F	S1	∆	50	380
YE3-355L-8	8	200	387.0	745	2546.7	94.6	0.83	89	IP55	F	S1	∆	50	380
YE3-355L2-8	8	220	425.7	745	2801.3	94.6	0.83	89	IP55	F	S1	∆	50	380
YE3-355X1-8	8	250	501.9	745	3183.3	94.6	0.80	89	IP55	F	S1	∆	50	380
YE3-355X2-8	8	315	632.4	745	4011.0	94.6	0.80	89	IP55	F	S1	∆	50	380
YE3-400M1-8	8	250	501.9	745	3183.3	94.6	0.80	91	IP55	F	S1	∆	50	380
YE3-400M2-8	8	280	562.1	745	3565.3	94.6	0.80	91	IP55	F	S1	∆	50	380
YE3-400L1-8	8	315	632.4	745	4011.0	94.6	0.80	91	IP55	F	S1	∆	50	380
YE3-400L2-8	8	355	712.7	745	4520.3	94.6	0.80	91	IP55	F	S1	∆	50	380
YE3-400L3-8	8	400	803.1	745	5093.3	94.6	0.80	91	IP55	F	S1	∆	50	380
YE3-450X1-8	8	450	892.3	745	5730.0	94.6	0.81	93	IP55	F	S1	∆	50	380
YE3-450X2-8	8	500	991.4	745	6366.7	94.6	0.81	93	IP55	F	S1	∆	50	380
YE3-450X3-8	8	560	1110.4	745	7130.7	94.6	0.81	93	IP55	F	S1	∆	50	380
YE3-450X4-8	8	630	1249.2	745	8022.0	94.6	0.81	93	IP55	F	S1	∆	50	380

联系方式

4000-999-510
