技术特征

机座范围

H80~315

功率范围

0.55~90kW

额定电压

380V

额定转速

3000、1500、1000、750

效率等级

1级能效

防护等级

IP55

冷却方式 IC411、IC416 绝缘等级 F
工作方式 S1 安装方式 B3、B5、B35、B14、B34、V1
接线方式 Y

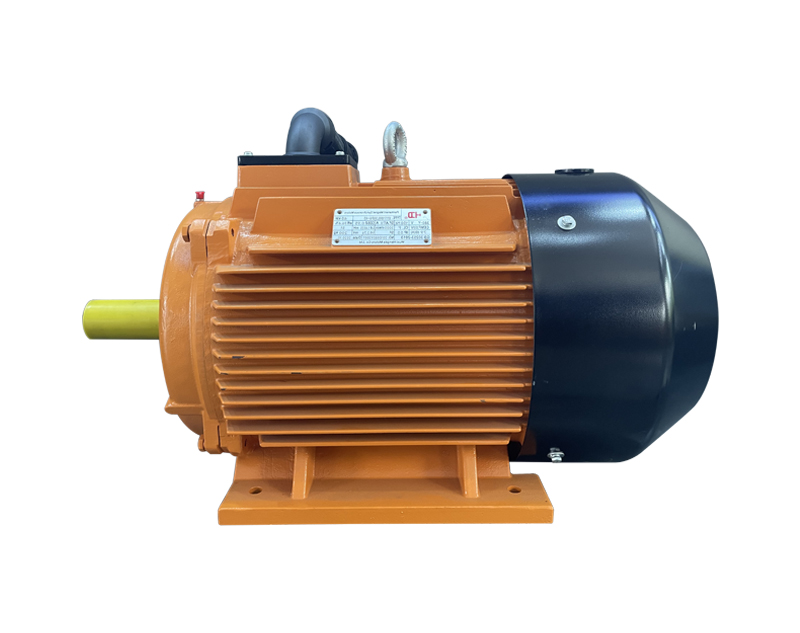

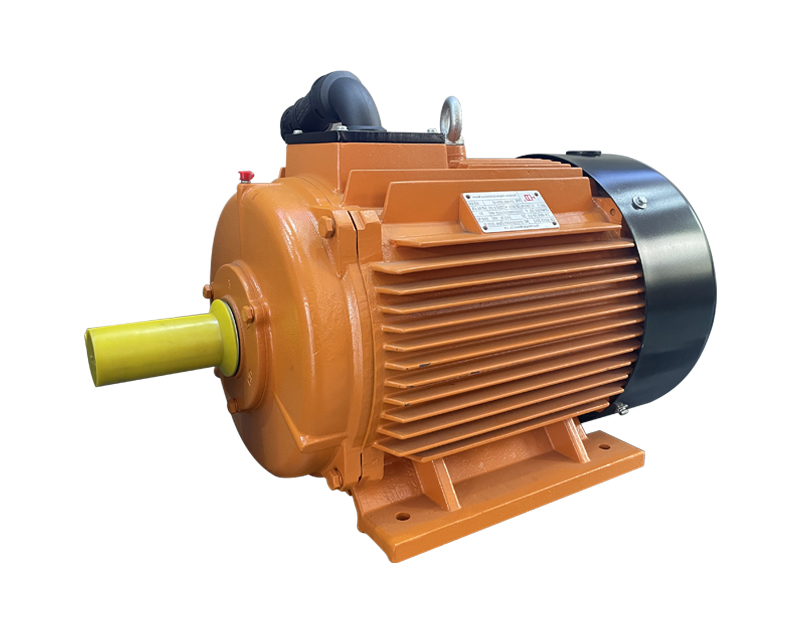

变频驱动永磁同步电动机

本系列电机以同步电转速运转,定子转子无滑差,在稳定运行时没有转子铜耗和铁耗,进而可以减小风扇,相应的风摩耗可减小。基于稀土永磁电动机不需要无功励磁电流,所以可显著提高功率因数至极限值(1.0);能适应多种负载工况要求,有明显的节能效果,运行可靠安全、替代成本低,投资回收期短,得到国家“电机系统节能工程”的推荐。

运行条件
  • -15°C~+40°C
    环境空气温度
  • ≤90% (当温度为25°c时)
    环境空气月平均最高相对湿度
  • ≤1KM
    海拔
  • 规格型号额定功率额定电压额定频率绝缘等级极数额定转速效率机座号产品重量外形尺寸 mm
    kWVHzr/minηkg
    XYT80M15P8-0.55 0.55 380 100 F 8 1500 85.6 80 13 300 167 245
    XYT90L30P4-2.2 2.2 380 100 F 8 3000 91.8 90 20 385 190 265
    XYT132M15P8-11 11 380 100 F 8 1500 93.6 132 83 560 275 365
    XYT160L10P8-11 11 380 66.7 F 8 1000 94.5 160 130 700 320 440
    XYT90S30P6-1.5 1.5 380 150 F 6 3000 90.9 90 17 355 190 265
    XYT90S30P6-2.2 2.2 380 150 F 6 3000 91.8 90 18 355 190 265
    XYT90L30P6-2.2 2.2 380 150 F 6 3000 91.8 90 19 385 190 265
    XYT90L30P6-3 3 380 150 F 6 3000 92.6 90 23 385 190 265
    XYT100L30P6-3 3 380 150 F 6 3000 92.6 100 26 435 215 290
    XYT100L30P6-4 4 380 150 F 6 3000 93.3 100 28 435 215 290
    XYT112M30P6-4 4 380 150 F 6 3000 93.3 112 34 470 240 325
    XYT112M30P6-5.5 5.5 380 150 F 6 3000 94 112 36 470 240 325
    XYT112M30P6-7.5 7.5 380 150 F 6 3000 94.5 112 38 470 240 325
    XYT132S30P6-5.5 5.5 380 150 F 6 3000 94 132 57 510 275 365
    XYT132S30P6-7.5 7.5 380 150 F 6 3000 94.5 132 62 510 275 365
    XYT132S30P6-11 11 380 150 F 6 3000 95 132 74 510 275 365
    XYT132M30P6-11 11 380 150 F 6 3000 95 132 77 560 275 365
    XYT132M30P6-15 15 380 150 F 6 3000 95.3 132 83 560 275 365
    XYT160M30P6-11 11 380 150 F 6 3000 95 160 93 670 320 440
    XYT160M30P6-15 15 380 150 F 6 3000 95.3 160 102 670 320 440
    XYT160M30P6-18.5 18.5 380 150 F 6 3000 95.6 160 110 670 320 440
    XYT160M30P6-22 22 380 150 F 6 3000 95.9 160 110 670 320 440
    XYT160L30P6-18.5 18.5 380 150 F 6 3000 95.6 160 113 700 320 440
    XYT160L30P6-22 22 380 150 F 6 3000 95.9 160 113 700 320 440
    XYT160L30P6-30 30 380 150 F 6 3000 96.1 160 130 700 320 440
    XYT160M30P6-37 37 380 150 F 6 3000 96.3 160 155 670 320 440
    XYT80M30P8-0.55 0.55 380 200 F 8 3000 87.3 80 12 300 167 245
    XYT80M30P8-0.75 0.75 380 200 F 8 3000 88.6 80 12 300 167 245
    XYT80M30P8-1.1 1.1 380 200 F 8 3000 89.8 80 17 300 167 245
    XYT80M30P8-1.5 1.5 380 200 F 8 3000 90.9 80 17 300 167 245
    XYT80M30P8-2.2 2.2 380 200 F 8 3000 91.8 80 18 300 167 245
    XYT80M30P8-3 3 380 200 F 8 3000 92.6 80 18 300 167 245
    XYT90S30P8-1.5 1.5 380 200 F 8 3000 90.9 90 17 355 190 265
    XYT90S30P8-2.2 2.2 380 200 F 8 3000 91.8 90 19 355 190 265
    XYT90L30P8-2.2 2.2 380 200 F 8 3000 91.8 90 19 385 190 265
    XYT90L30P8-3 3 380 200 F 8 3000 92.6 90 23 385 190 265
    XYT100L30P8-3 3 380 200 F 8 3000 92.6 100 26 435 215 290
    XYT100L30P8-4 4 380 200 F 8 3000 93.3 100 28 435 215 290
    XYT112M30P8-4 4 380 200 F 8 3000 93.3 112 34 470 240 325
    XYT112M30P8-5.5 5.5 380 200 F 8 3000 94 112 36 470 240 325
    XYT112M30P8-7.5 7.5 380 200 F 8 3000 94.5 112 38 470 240 325
    XYT132S30P8-5.5 5.5 380 200 F 8 3000 94 132 57 510 275 365
    XYT132S30P8-7.5 7.5 380 200 F 8 3000 94.5 132 62 510 275 365
    XYT132S30P8-11 11 380 200 F 8 3000 95 132 77 510 275 365
    XYT132M30P8-11 11 380 200 F 8 3000 95 132 79 560 275 365
    XYT132M30P8-15 15 380 200 F 8 3000 95.3 132 83 560 275 365
    XYT160M30P8-11 11 380 200 F 8 3000 95 160 93 670 320 440
    XYT160M30P8-15 15 380 200 F 8 3000 95.3 160 102 670 320 440
    XYT160M30P8-18.5 18.5 380 200 F 8 3000 95.6 160 113 670 320 440
    XYT160M30P8-22 22 380 200 F 8 3000 95.9 160 113 670 320 440
    XYT160L30P8-18.5 18.5 380 200 F 8 3000 95.6 160 118 700 320 440
    XYT160L30P8-22 22 380 200 F 8 3000 95.9 160 123 700 320 440
    XYT160L30P8-30 30 380 200 F 8 3000 96.1 160 130 700 320 440
    XYT160M30P8-37 37 380 200 F 8 3000 96.3 160 155 670 320 440
    XYT80M30P4-0.55 0.55 380 100 F 8 3000 87.3 80 14 300 167 245
    XYT80M30P4-0.75 0.75 380 100 F 8 3000 88.6 80 15 300 167 245
    XYT80M30P4-1.1 1.1 380 100 F 8 3000 89.8 80 17 300 167 245
    XYT80M30P4-1.5 1.5 380 100 F 8 3000 90.9 80 17 300 167 245
    XYT80M30P4-2.2 2.2 380 100 F 8 3000 91.8 80 18 300 167 245
    XYT80M30P4-3 3 380 100 F 8 3000 92.6 80 19 300 167 245
    XYT90S30P4-1.5 1.5 380 100 F 8 3000 90.9 90 17 355 190 265
    XYT90S30P4-2.2 2.2 380 100 F 8 3000 91.8 90 19 355 190 265
    XYT90L30P4-3 3 380 100 F 8 3000 92.6 90 23 385 190 265
    XYT100L30P4-3 3 380 100 F 8 3000 92.6 100 26 435 215 290
    XYT100L30P4-4 4 380 100 F 8 3000 93.3 100 28 435 215 290
    XYT112M30P4-4 4 380 100 F 8 3000 93.3 112 34 470 240 325
    XYT112M30P4-5.5 5.5 380 100 F 8 3000 94 112 36 470 240 325
    XYT112M30P4-7.5 7.5 380 100 F 8 3000 94.5 112 38 470 240 325
    XYT132S30P4-5.5 5.5 380 100 F 8 3000 94 132 57 510 275 365
    XYT132S30P4-7.5 7.5 380 100 F 8 3000 94.5 132 62 510 275 365
    XYT132M30P4-11 11 380 100 F 8 3000 95 132 77 560 275 365
    XYT132M30P4-15 15 380 100 F 8 3000 95.3 132 83 560 275 365
    XYT160M30P4-11 11 380 100 F 8 3000 95 160 93 670 320 440
    XYT160M30P4-15 15 380 100 F 8 3000 95.3 160 102 670 320 440
    XYT160L30P4-18.5 18.5 380 100 F 8 3000 95.6 160 113 700 320 440
    XYT160L30P4-22 22 380 100 F 8 3000 95.9 160 113 700 320 440
    XYT80M15P4-0.75 0.75 380 50 F 4 1500 85.6 80 17 300 167 245
    XYT80M15P4-1.1 1.1 380 50 F 4 1500 87.4 80 18 300 167 245
    XYT80M15P4-1.5 1.5 380 50 F 4 1500 88.1 80 21 300 167 245
    XYT90S15P4-1.1 1.1 380 50 F 4 1500 87.4 90 19 355 190 265
    XYT80M15P8-0.75 0.75 380 100 F 8 1500 85.6 80 14 300 167 245
    XYT80M15P8-1.1 1.1 380 100 F 8 1500 87.4 80 17 300 167 245
    XYT80M15P8-1.5 1.5 380 100 F 8 1500 88.1 80 19 300 167 245
    XYT90S15P8-0.75 0.75 380 100 F 8 1500 85.6 90 19 355 190 265
    XYT90S15P8-1.1 1.1 380 100 F 8 1500 87.4 90 18 355 190 265
    XYT90L15P8-1.1 1.1 380 100 F 8 1500 87.4 90 19 385 190 265
    XYT90L15P8-1.5 1.5 380 100 F 8 1500 88.1 90 23 385 190 265
    XYT90L15P8-2.2 2.2 380 100 F 8 1500 89.7 90 25 385 190 265
    XYT90L15P8-3 3 380 100 F 8 1500 90.3 90 27 385 190 265
    XYT100L15P8-2.2 2.2 380 100 F 8 1500 89.7 100 29 435 215 290
    XYT100L15P8-3 3 380 100 F 8 1500 90.3 100 32 435 215 290
    XYT100L15P8-4 4 380 100 F 8 1500 90.9 100 34 435 215 290
    XYT112M15P8-4 4 380 100 F 8 1500 90.9 112 45 470 240 325
    XYT112M15P8-5.5 5.5 380 100 F 8 1500 92.1 112 50 470 240 325
    XYT132S15P8-5.5 5.5 380 100 F 8 1500 92.1 132 59 510 275 365
    XYT132M15P8-7.5 7.5 380 100 F 8 1500 92.6 132 73 560 275 365
    XYT132M15P8-15 15 380 100 F 8 1500 94 132 93 560 275 365
    XYT160M15P8-11 11 380 100 F 8 1500 93.6 160 104 670 320 440
    XYT160M15P8-15 15 380 100 F 8 1500 94 160 115 670 320 440
    XYT160L15P8-15 15 380 100 F 8 1500 94 160 120 700 320 440
    XYT160L15P8-18.5 18.5 380 100 F 8 1500 94.3 160 140 700 320 440
    XYT160L15P8-22 22 380 100 F 8 1500 94.7 160 151 700 320 440
    XYT90S15P6-0.75 0.75 380 75 F 6 1500 85.6 90 19 355 190 265
    XYT90S15P6-1.1 1.1 380 75 F 6 1500 87.4 90 18 355 190 265
    XYT90L15P6-1.1 1.1 380 75 F 6 1500 87.4 90 19 385 190 265
    XYT90L15P6-1.5 1.5 380 75 F 6 1500 88.1 90 23 385 190 265
    XYT90L15P6-2.2 2.2 380 75 F 6 1500 89.7 90 25 385 190 265
    XYT90L15P6-3 3 380 75 F 6 1500 90.3 90 27 385 190 265
    XYT100L15P6-2.2 2.2 380 75 F 6 1500 89.7 100 29 435 215 290
    XYT100L15P6-3 3 380 75 F 6 1500 90.3 100 32 435 215 290
    XYT100L15P6-4 4 380 75 F 6 1500 90.9 100 34 435 215 290
    XYT112M15P6-4 4 380 75 F 6 1500 90.9 112 45 470 240 325
    XYT112M15P6-5.5 5.5 380 75 F 6 1500 92.1 112 50 470 240 325
    XYT132S15P6-5.5 5.5 380 75 F 6 1500 92.1 132 59 510 275 365
    XYT132M15P6-7.5 7.5 380 75 F 6 1500 92.6 132 73 560 275 365
    XYT132M15P6-11 11 380 75 F 6 1500 93.6 132 83 560 275 365
    XYT132M15P6-15 15 380 75 F 6 1500 94 132 93 560 275 365
    XYT160M15P6-11 11 380 75 F 6 1500 93.6 160 104 670 320 440
    XYT160M15P6-15 15 380 75 F 6 1500 94 160 115 670 320 440
    XYT160L15P6-15 15 380 75 F 6 1500 94 160 120 700 320 440
    XYT160L15P6-18.5 18.5 380 75 F 6 1500 94.3 160 140 700 320 440
    XYT160L15P6-22 22 380 75 F 6 1500 94.7 160 151 700 320 440
    XYT80M10P8-0.55 0.55 380 66.7 F 8 1000 85.9 80 17 300 167 245
    XYT80M10P8-0.75 0.75 380 66.7 F 8 1000 87.4 80 19 300 167 245
    XYT80M10P8-1.1 1.1 380 66.7 F 8 1000 88.7 80 21 300 167 245
    XYT80M10P8-1.5 1.5 380 66.7 F 8 1000 89.9 80 23 300 167 245
    XYT90S10P8-0.75 0.75 380 66.7 F 8 1000 87.4 90 19 355 190 265
    XYT90L10P8-1.1 1.1 380 66.7 F 8 1000 88.7 90 24 385 190 265
    XYT90L10P8-1.5 1.5 380 66.7 F 8 1000 89.9 90 25 385 190 265
    XYT100L10P8-1.5 1.5 380 66.7 F 8 1000 89.9 100 29 435 215 290
    XYT100L10P8-2.2 2.2 380 66.7 F 8 1000 90.9 100 34 435 215 290
    XYT112M10P8-2.2 2.2 380 66.7 F 8 1000 90.9 112 38 470 240 325
    XYT112M10P8-3 3 380 66.7 F 8 1000 91.8 112 44 470 240 325
    XYT112M10P8-4 4 380 66.7 F 8 1000 92.7 112 53 470 240 325
    XYT112M10P8-5.5 5.5 380 66.7 F 8 1000 93.4 112 61 470 240 325
    XYT132S10P8-3 3 380 66.7 F 8 1000 91.8 132 59 510 275 365
    XYT132M10P8-4 4 380 66.7 F 8 1000 92.7 132 66 560 275 365
    XYT132M10P8-5.5 5.5 380 66.7 F 8 1000 93.4 132 76 560 275 365
    XYT132M10P8-7.5 7.5 380 66.7 F 8 1000 94 132 83 560 275 365
    XYT160M10P8-7.5 7.5 380 66.7 F 8 1000 94 160 104 670 320 440
    XYT160L10P8-15 15 380 66.7 F 8 1000 94.9 160 147 700 320 440
    XYT90S10P6-0.75 0.75 380 50 F 6 1000 87.4 90 19 355 190 265
    XYT90L10P6-1.1 1.1 380 50 F 6 1000 88.7 90 24 385 190 265
    XYT90L10P6-1.5 1.5 380 50 F 6 1000 89.9 90 25 385 190 265
    XYT100L10P6-1.5 1.5 380 50 F 6 1000 89.9 100 29 435 215 290
    XYT100L10P6-2.2 2.2 380 50 F 6 1000 90.9 100 34 435 215 290
    XYT112M10P6-2.2 2.2 380 50 F 6 1000 90.9 112 38 470 240 325
    XYT112M10P6-3 3 380 50 F 6 1000 91.8 112 44 470 240 325
    XYT112M10P6-4 4 380 50 F 6 1000 92.7 112 53 470 240 325
    XYT112M10P6-5.5 5.5 380 50 F 6 1000 93.4 112 61 470 240 325
    XYT132S10P6-3 3 380 50 F 6 1000 91.8 132 59 510 275 365
    XYT132M10P6-4 4 380 50 F 6 1000 92.7 132 66 560 275 365
    XYT132M10P6-5.5 5.5 380 50 F 6 1000 93.4 132 76 560 275 365
    XYT132M10P6-7.5 7.5 380 50 F 6 1000 94 132 83 560 275 365
    XYT160M10P6-7.5 7.5 380 50 F 6 1000 94 160 104 670 320 440
    XYT160L10P6-11 11 380 50 F 6 1000 94.5 160 130 700 320 440
    XYT160L10P6-15 15 380 50 F 6 1000 94.9 160 147 700 320 440
    XYT80M15P4-0.55 0.55 380 50 F 4 1500 85.6 80 15 300 167 245
    XYT112M9.0P8-1.5 1.5 380 60 F 8 900 84.5 112 45 470 240 325
    XYT180M30P6-22 22 380 150 F 6 3000 95.9 180 144 740 380 470
    XYT200L10P8-22 22 380 66.7 F 8 1000 95.6 200 227 780 410 525
    XYT280M15P8-90 90 380 100 F 8 1500 96.2 280 575 1035 580 698
    XYT315M10P8-90 90 380 66.7 F 8 1000 96.5 315 894 1340 645 885
    XYT180L30P6-25 25 380 150 F 6 3000 96.1 180 153 780 380 470
    XYT180L30P6-30 30 380 150 F 6 3000 96.1 180 155 780 380 470
    XYT180M30P6-37 37 380 150 F 6 3000 96.3 180 160 740 380 470
    XYT180M30P6-45 45 380 150 F 6 3000 96.4 180 175 740 380 470
    XYT180M30P6-55 55 380 150 F 6 3000 96.5 180 190 740 380 470
    XYT180L30P6-37 37 380 150 F 6 3000 96.3 180 171 780 380 470
    XYT180L30P6-45 45 380 150 F 6 3000 96.4 180 185 780 380 470
    XYT180L30P6-55 55 380 150 F 6 3000 96.5 180 195 780 380 470
    XYT200L30P6-30 30 380 150 F 6 3000 96.1 200 197 780 410 525
    XYT200L30P6-37 37 380 150 F 6 3000 96.3 200 197 780 410 525
    XYT200L30P6-45 45 380 150 F 6 3000 96.4 200 217 780 410 525
    XYT200L30P6-55 55 380 150 F 6 3000 96.5 200 232 780 410 525
    XYT200L30P6-75 75 380 150 F 6 3000 96.6 200 255 780 410 525
    XYT225S30P6-45 45 380 150 F 6 3000 96.4 225 228 820 470 580
    XYT225S30P6-55 55 380 150 F 6 3000 96.5 225 240 820 470 580
    XYT225S30P6-75 75 380 150 F 6 3000 96.6 225 260 820 470 580
    XYT225M30P6-45 45 380 150 F 6 3000 96.4 225 236 845 470 580
    XYT225M30P6-55 55 380 150 F 6 3000 96.5 225 245 845 470 580
    XYT225M30P6-75 75 380 150 F 6 3000 96.6 225 261 845 470 580
    XYT225M30P6-90 75 380 150 F 6 3000 96.6 225 282 845 470 580
    XYT250M30P6-55 55 380 150 F 6 3000 96.5 250 287 915 490 635
    XYT250M30P6-75 75 380 150 F 6 3000 96.6 250 307 915 490 635
    XYT250M30P6-90 90 380 150 F 6 3000 96.7 250 347 915 490 635
    XYT280S30P6-75 75 380 150 F 6 3000 96.6 280 397 985 580 698
    XYT280M30P6-90 90 380 150 F 6 3000 96.7 280 397 1035 580 698
    XYT180M30P8-22 22 380 200 F 8 3000 95.9 180 144 740 380 470
    XYT180L30P8-25 25 380 200 F 8 3000 96 180 153 780 380 470
    XYT180L30P8-30 30 380 200 F 8 3000 96.1 180 155 780 380 470
    XYT180M30P8-37 37 380 200 F 8 3000 96.3 180 160 740 380 470
    XYT180M30P8-45 45 380 200 F 8 3000 96.4 180 175 740 380 470
    XYT180M30P8-55 55 380 200 F 8 3000 96.5 180 190 740 380 470
    XYT180L30P8-37 37 380 200 F 8 3000 96.3 180 160 780 380 470
    XYT180L30P8-45 45 380 200 F 8 3000 96.4 180 185 780 380 470
    XYT180L30P8-55 55 380 200 F 8 3000 96.5 180 195 780 380 470
    XYT200L30P8-30 30 380 200 F 8 3000 96.1 200 197 780 410 525
    XYT200L30P8-37 37 380 200 F 8 3000 96.3 200 197 780 410 525
    XYT200L30P8-45 45 380 200 F 8 3000 96.4 200 217 780 410 525
    XYT200L30P8-55 55 380 200 F 8 3000 96.5 200 232 780 410 525
    XYT200L30P8-75 75 380 200 F 8 3000 96.6 200 255 780 410 525
    XYT225S30P8-45 45 380 200 F 8 3000 96.4 225 228 820 470 580
    XYT225S30P8-55 55 380 200 F 8 3000 96.5 225 240 820 470 580
    XYT225S30P8-75 75 380 200 F 8 3000 96.6 225 260 820 470 580
    XYT225M30P8-45 45 380 200 F 8 3000 96.4 225 236 845 470 580
    XYT225M30P8-55 55 380 200 F 8 3000 96.5 225 245 845 470 580
    XYT225M30P8-75 75 380 200 F 8 3000 96.6 225 261 845 470 580
    XYT225M30P8-90 75 380 200 F 8 3000 96.6 225 282 845 470 580
    XYT250M30P8-55 55 380 200 F 8 3000 96.5 250 287 915 490 635
    XYT250M30P8-75 75 380 200 F 8 3000 96.6 250 307 915 490 635
    XYT250M30P8-90 90 380 200 F 8 3000 96.7 250 347 915 490 635
    XYT280S30P8-75 75 380 200 F 8 3000 96.6 280 397 985 580 698
    XYT280M30P8-90 90 380 200 F 8 3000 96.7 280 397 1035 580 698
    XYT180M30P4-22 22 380 100 F 8 3000 95.9 180 144 740 380 470
    XYT180L30P4-30 30 380 100 F 8 3000 96.1 180 155 780 380 470
    XYT180L30P4-37 37 380 100 F 8 3000 96.3 180 160 780 380 470
    XYT180L30P4-45 45 380 100 F 8 3000 96.4 180 185 780 380 470
    XYT180M15P8-15 15 380 100 F 8 1500 94 180 150 740 380 470
    XYT180M15P8-18.5 18.5 380 100 F 8 1500 94.3 180 165 740 380 470
    XYT180M15P8-22 22 380 100 F 8 1500 94.7 180 170 740 380 470
    XYT180L15P8-22 22 380 100 F 8 1500 94.7 180 170 780 380 470
    XYT180M15P8S-15 15 380 100 F 8 1500 94 180 130 740 380 470
    XYT180M15P8S-18.5 18.5 380 100 F 8 1500 94.3 180 155 740 380 470
    XYT180L15P8S-22 22 380 100 F 8 1500 94.7 180 171 780 380 470
    XYT180L15P8-25 25 380 100 F 8 1500 94.8 180 191 780 380 470
    XYT180L15P8-30 30 380 100 F 8 1500 95 180 200 780 380 470
    XYT180L15P8-37 37 380 100 F 8 1500 95.3 180 228 780 380 470
    XYT200L15P8-30 30 380 100 F 8 1500 95 200 211 780 410 525
    XYT200L15P8-37 37 380 100 F 8 1500 95.3 200 230 780 410 525
    XYT200L15P8-45 45 380 100 F 8 1500 95.6 200 255 780 410 525
    XYT225S15P8S-37 37 380 100 F 8 1500 95.3 225 260 820 470 580
    XYT225M15P8S-45 45 380 100 F 8 1500 95.6 225 304 845 470 580
    XYT225S15P8-37 37 380 100 F 8 1500 95.3 225 260 820 470 580
    XYT225S15P8-45 45 380 100 F 8 1500 95.6 225 304 820 470 580
    XYT225M15P8-45 45 380 100 F 8 1500 95.6 225 312 845 470 580
    XYT225M15P8-55 55 380 100 F 8 1500 95.8 225 324 845 470 580
    XYT225M15P8-65 65 380 100 F 8 1500 95.9 225 341 845 470 580
    XYT225M15P8-75 75 380 100 F 8 1500 96 225 371 845 470 580
    XYT250M15P8-55 55 380 100 F 8 1500 95.8 250 406 915 490 635
    XYT250M15P8-75 75 380 100 F 8 1500 96 250 416 915 490 635
    XYT250M15P8-90 90 380 100 F 8 1500 96.2 250 441 915 490 635
    XYT280S15P8-75 75 380 100 F 8 1500 96 280 500 985 580 698
    XYT180M15P6-15 15 380 75 F 6 1500 94 180 150 740 380 470
    XYT180M15P6-18.5 18.5 380 75 F 6 1500 94.3 180 165 740 380 470
    XYT180M15P6-22 22 380 75 F 6 1500 94.7 180 170 740 380 470
    XYT180L15P6-22 22 380 75 F 6 1500 94.7 180 170 780 380 470
    XYT180L15P6-25 25 380 75 F 6 1500 94.8 180 191 780 380 470
    XYT180L15P6-30 30 380 75 F 6 1500 95 180 200 780 380 470
    XYT180L15P6-37 37 380 75 F 6 1500 95.3 180 228 780 380 470
    XYT200L15P6-30 30 380 75 F 6 1500 95 200 211 780 410 525
    XYT200L15P6-37 37 380 75 F 6 1500 95.3 200 230 780 410 525
    XYT200L15P6-45 45 380 75 F 6 1500 95.6 200 255 780 410 525
    XYT225S15P6-37 37 380 75 F 6 1500 95.3 225 260 820 470 580
    XYT225S15P6-45 45 380 75 F 6 1500 95.6 225 304 820 470 580
    XYT225M15P6-45 45 380 75 F 6 1500 95.6 225 260 845 470 580
    XYT225M15P6-55 55 380 75 F 6 1500 95.8 225 304 845 470 580
    XYT225M15P6-65 65 380 75 F 6 1500 95.9 225 341 845 470 580
    XYT225M15P6-75 75 380 75 F 6 1500 96 225 371 845 470 580
    XYT250M15P6-55 55 380 75 F 6 1500 95.8 250 341 915 490 635
    XYT250M15P6-75 75 380 75 F 6 1500 96 250 416 915 490 635
    XYT250M15P6-90 90 380 75 F 6 1500 96.2 250 441 915 490 635
    XYT280S15P6-75 75 380 75 F 6 1500 96 280 500 985 580 698
    XYT280M15P6-90 90 380 75 F 6 1500 96.2 280 575 1035 580 698
    XYT180L10P8-15 15 380 66.7 F 8 1000 94.9 180 170 780 380 470
    XYT180L10P8-18.5 18.5 380 66.7 F 8 1000 95.3 180 186 780 380 470
    XYT180L10P8-22 22 380 66.7 F 8 1000 95.6 180 196 780 380 470
    XYT180L10P8-30 30 380 66.7 F 8 1000 95.8 180 211 780 380 470
    XYT200L10P8-18.5 18.5 380 66.7 F 8 1000 95.3 200 311 780 410 525
    XYT200L10P8-30 30 380 66.7 F 8 1000 95.8 200 244 780 410 525
    XYT225M10P8-30 30 380 66.7 F 8 1000 95.8 225 308 845 470 580
    XYT225M10P8-37 37 380 66.7 F 8 1000 96 225 324 845 470 580
    XYT250M10P8-37 37 380 66.7 F 8 1000 96 250 377 915 490 635
    XYT250M10P8-45 45 380 66.7 F 8 1000 96.2 250 406 915 490 635
    XYT250M10P8-55 55 380 66.7 F 8 1000 96.3 250 431 915 490 635
    XYT280S10P8-45 45 380 66.7 F 8 1000 96.2 280 520 985 580 698
    XYT280S10P8-55 55 380 66.7 F 8 1000 96.3 280 557 985 580 698
    XYT280M10P8-55 55 380 66.7 F 8 1000 96.3 280 587 1035 580 698
    XYT280M10P8-75 75 380 66.7 F 8 1000 96.4 280 606 1035 580 698
    XYT280M10P8-90 90 380 66.7 F 8 1000 96.5 280 646 1035 580 698
    XYT315S10P8-75 75 380 66.7 F 8 1000 96.4 315 829 1230 645 885
    XYT315S10P8-90 90 380 66.7 F 8 1000 96.5 315 854 1230 645 885
    XYT180L10P6-15 15 380 50 F 6 1000 94.9 180 170 780 380 470
    XYT180L10P6-18.5 18.5 380 50 F 6 1000 95.3 180 186 780 380 470
    XYT180L10P6-22 22 380 50 F 6 1000 95.6 180 196 780 380 470
    XYT180L10P6-30 30 380 50 F 6 1000 95.8 180 211 780 380 470
    XYT200L10P6-18.5 18.5 380 50 F 6 1000 95.3 200 311 780 410 525
    XYT200L10P6-22 22 380 50 F 6 1000 95.6 200 227 780 410 525
    XYT200L10P6-30 30 380 50 F 6 1000 95.8 200 244 780 410 525
    XYT225M10P6-30 30 380 50 F 6 1000 95.8 225 308 845 470 580
    XYT225M10P6-37 37 380 50 F 6 1000 96 225 324 845 470 580
    XYT250M10P6-37 37 380 50 F 6 1000 96 250 377 915 490 635
    XYT250M10P6-45 45 380 50 F 6 1000 96.2 250 406 915 490 635
    XYT250M10P6-55 55 380 50 F 6 1000 96.3 250 431 915 490 635
    XYT280S10P6-45 45 380 50 F 6 1000 96.2 280 520 985 580 698
    XYT280M10P6-55 55 380 50 F 6 1000 96.3 280 587 1035 580 698
    XYT280M10P6-75 75 380 50 F 6 1000 96.4 280 606 1035 580 698
    XYT280M10P6-90 90 380 50 F 6 1000 96.5 280 646 1035 580 698
    XYT315S10P6-75 75 380 50 F 6 1000 96.4 315 928 1230 645 885
    XYT315S10P6-90 90 380 50 F 6 1000 96.5 315 854 1230 645 885
    XYT315M10P6-90 90 380 50 F 6 1000 96.5 315 894 1340 645 885
    XYT250M10P12-45 45 380 100 F 12 1000 96.2 250 406 915 490 635
    XYT250M10P12-55 55 380 100 F 12 1000 96.3 250 431 915 490 635
    XYT250M10P12-75 75 380 100 F 12 1000 96.4 250 505 915 490 635
    XYT250M10P12-90 90 380 100 F 12 1000 96.5 250 548 915 490 635
    XYT280S10P6-55 55 380 50 F 6 1000 96.3 280 557 985 580 698
    XYT225M19.5P4-55 55 380 65 F 4 1950 95.8 225 345 845 470 580
